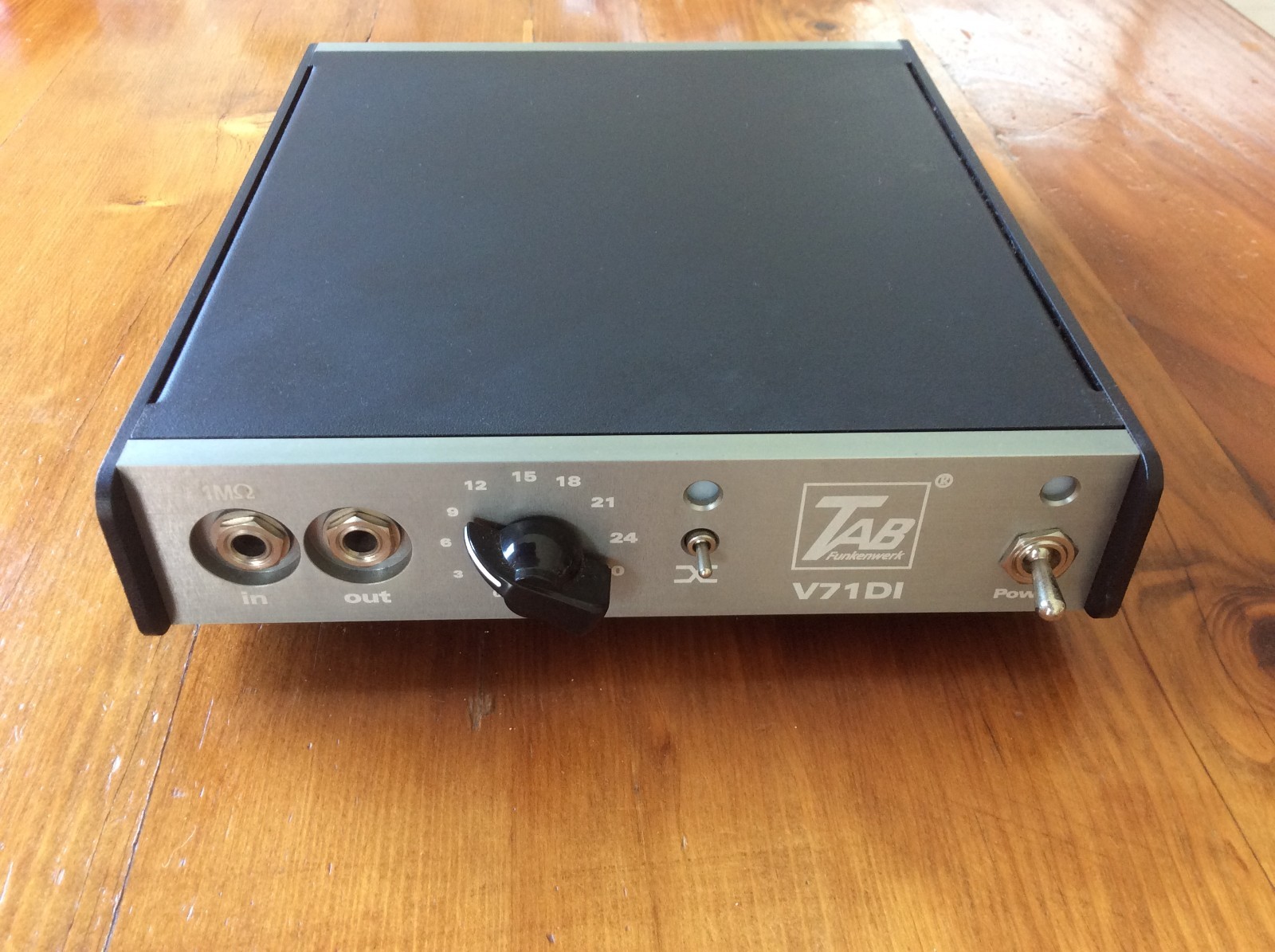

TAB V71DI V71DI: Mono Direct Input Pre-Amplifier – Mint Condition.



The TAB Funkenwerk V71 DI is a tube/transformer direct interface based around the amplifier of the Telefunken V72 mic preamp. The unit uses NOS tubes and hand-wound transformers to exact TAB Funkenwerk V72S specification.  The maximum input signal capability is +10dB before going into smooth tube/valve break up.  The V71 features a rotary switch with a maximum gain of 36dB, balanced line-level XLR output, a polarity reverse, and a 100 ohm resistive ground buffer. The V71DI is an optimal solution for buffering or amplifying any unbalanced signal source; from guitar and bass pick ups to CD players, radios, sound cards, keyboards, etc.  The V71DI circuit layout is extremely quiet and gives this all tube design a better signal to noise ratio (-100dB @ 0dB/-90dB at max. gain) than standard Digital Sound cards, and most discrete or op amp based DI boxes.Features include:Schematic based on historic V72sTransformers constructed faithfully to the historic V72s specsNOS tubes 36 dB of gainSingle gain switchDirect InputPhase Reverse100 Ohm Resistive Ground Buffer

If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to buy, and to see similar items on eBay






Category: Musical Instruments:Pro Audio:Preamps and Channel Strips
Location: Charlestown, NSW
