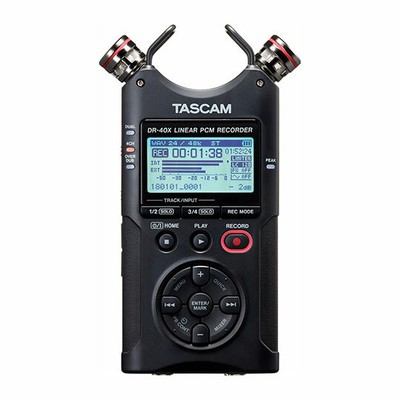

Tascam DR-40X Portable 4-Track Audio Recorder And USB Audio Interface, Built-in Cardioid Stereo Condenser Microphone Scan code
LN96025 Manufacturer code
DR-40X Product Overview
Fourty to the power of X
The classic DR-40, four track tascam model has been brought up to date, with two XLR / balanced line combo inputs on the bottom and stereo built in mics at the top. The config makes it perfect for uses such as recording the stereo feed from a desk at a live gig and capturing the crowd noise using the built in mics in X/Y or A-B position.
It’s also got Phantom power on the XLR inputs, so could also be used for location or acoustic guitar recording with two spot mics and the built in pair capturing room sound.
Controls
The controls have been redesigned for speed and most key features can now be accessed with one thumb operation, with common functions such as adjusting levels, adding markers and of course, record are all activated with a single button push.
Safety Track
They’ve even added a safety track funnction to record the same source at different gains on different tracks, to cope with that “overexcited vocalist syndrome” that can often occur.
Extended Battery Life
dr-07x uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries. Also dr-07x can be powered by a USB mobile battery as well for super long extended use.
Interface
Connect to a PC in USB Audio interface mode, and DR-40X becomes a tool for voiceover work, live streaming and songwriting with studio-quality audio. Built-in microphones appear as USB mics.
Special Features Built-in cardioid stereo condenser microphone (up to 125 dB SPL), foldable in/out for AB/XY configuration, MS decoder included
Stereo XLR/TRS mic/line input with phantom power (supports +4 dB line level input)
Rec. media: SD/SDHC/SDXC (up to 128 GB)
USB audio interface mode for Mac and Windows computers (two inputs, two outputs)
Overwrite function for punch-in recording with one level of Undo
Recording/playback formats
–WAV: 44.1/48/96 kHz, 16/24 bit
–MP3: 44.1/48 kHz, 32/64/96/128/192/256/320 kbit/s
4-track recording from the same source at different levels or from different sources
Recording functions: Non-destructive overdub, Peak Reduction, Auto Level, Limiter, Auto Recording, Pre-recording buffer, Self-timer, Marks, Tone generator for editing, , Low-cut filter (40/80/120/220 Hz)
Playback functions: Mixdown, Auto Level Align, VSA, Repeat/Loop, Playlist, Resume, Jump back, Equalizer
Built-in loudspeaker, headphones/line output
Reverb effect with six presets
Chromatic tuner, file divide function
QUICK menu, folder management, Hold function
USB 2.0 port for file transfer to/from computer
Footswitch connector for hands-free operation of several functions
Stand adapter ( inch) on bottom side
Specifications
Maximum SPL : 125 dB
Frequency response : 20 Hz . 40 kHz +1/.3 dB (Fs 96 kHz)
Total harmonic distortion : 0.05 %
S/N ratio : 92 dB
Power supply :3 AA batteries, USB bus power, Tascam PS-P520E (sold separately)
Power consumption :1.7 W
Dimensions (overall, W x D x H) 70/90 mm x 155 mm x 35 mm
Weight (without/with batteries) : 213/282 g Product Specification Brand Tascam Computer Interface Type USB 2 Analogue Outputs (Total) 2 Mic Preamps (Max) 2 Phantom Power No Bit Resolution 24 Dynamic Range 92 dB Dimensions (mm) 70 × 155 × 35 WxHxD MPN DR-40X Analogue Inputs (Total) 2 Connections (Input) 2 x XLR / Jack Combo Instrument Inputs (Max) 0 Sample Rate (Max) 96 kHz iPad Compatible No Connections (Output) 1 x Headphone (TRS 3.5mm Jack) DSP Processing No Warranty Duration12 months DOA Period28 days ManufacturerScan Computers International Limited TypeReturn to base RTB Period12 months Telephone0871-472-4747 About Us FAQ Delivery Returns Contact Us Terms & Conditions
