email: ebay@scan.co.uk About Us FAQ Delivery Returns Contact Us Terms & Conditions Components Computing Entertainment Networking Peripherals Software Storage Pro Audio Pro Video Other InterfacesMiNiSTUDIO Personal US-32 by TASCAM MiNiSTUDIO Personal US-32 by TASCAM

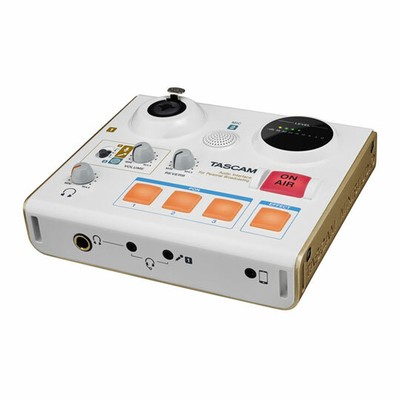

TASCAM MiNiSTUDIO Personal US-32 USB Audio Interface – Complete All-in-one Podcast Solution Scan code
LN72628 Manufacturer code
US-32 Product Overview Turn Online into SHOWTIME!
The TASCAM MiNiSTUDIO Personal US-32 is your complete, desktop online broadcast studio. Featuring a professional quality audio interface and a number of unique real-time effects, the MINISTUDIO Personal delivers everything you need to set the Internet on fire.
You talkin’ to me?
At the heart of every Podcast and online broadcast lies the desire to communicate. And more often than not, this communication takes the form of the human voice…and TASCAM knows a thing or two about recording the human voice. Central to the MiNiSTUDIO Personal is an XLR/combo mic/line connector and a professional quality micropone preamp. Built-in phantom power allows you to quickly and easily connect your favorite dynamic or conderser microphone…or not… For the ultimate in plug and play convenience, the MiNiSTUDIO Personal features a built-in microphone, so you’re ready to talk the talk right out of the box. Simply press the ON AIR button and go to town. And to top it all off, the MiNiSTUDIO Personal features a 4-band parametric EQ, adjustable on-board compression and a digital reverb effect with a convenient front panel depth control.
Have an effect
Designed to bring an extra dimension to your podcasts and live streaming, the TASCAM MiNiSTUDIO features three assignable PON sound effect buttons. Use the included bell, buzzer and applause effects or apply your own .wav or .mp3 files for a completely customized experience. You can also set each velocity sensitive PON button to act as a one-shot sound effect, to only play while you press or to loop as long as you hold the button down. Why should the morning DJ’s have all the fun?
Note: this feature is supported on both the MiNiSTUDIO Personal US-32 and the MiNiSTUDIO Creator US-42
Find your voice
Diguise your voice, fool your fans! Perhaps the most extreme feature of the MiNiSTUDIO Personal is the Voice Effects option. Simply pressing this innocent little button will instantly transform your voice in any one of a number of amazing and amusing ways. Pitch your voice up into cartoon mouse territory or pitch it down like you’ve joined the Dark Side. Add a spacey Echo, wobbly Chopper or go old school with the Walki-talkie-approved Radio effect. Voice Effects: crazy, wacky and a whole lot of fun.
Note: this feature is supported on both the MiNiSTUDIO Personal US-32 and the MiNiSTUDIO Creator US-42
Become an Expert
In addition to the default Easy mode of the TASCAM MiNiSTUDIO software panel is an Expert mode that can be accessed by selecting the tab along the top of the window. This exposes a more comprehensive set of controls that enable you to fine tune EQ, compression and reverb settings as well as customize the behavior of the PON sound effect buttons and the various Voice Effect options. Don’t be fooled by the friendly face of the MiNiSTUDIO – underneath the shiny exterior lies a truly professional tool that proudly carries the TASCAM name.
Note: this feature is supported on both the MiNiSTUDIO Personal US-32 and the MiNiSTUDIO Creator US-42
Your audience hears what you hear
You talk. You play music. You play games. You fire off PON sound effects and bathe your voice in the mysterious fog of a reverberant hallway. In short, you create an immersive soundscape that you want to share with your listeners. To make this dream a reality, the MiNiSTUDIO Personal US-32 supports TASCAM’s unique Broadcast architecture that seamlessley mixes your voice and effects with any and all audio produced by your PC or Laptop.
More information can be found in the PDF below:
Special Features Specifications
Sampling Frequency: 44.1k/48k/88.2k/96kHz
Quantization Bit Rate: 16/24bit
Analog Audio Inputs
Mic In: Mic In 1
Connector: CLR-3-31 (1:GND, 2:HOT, 3:COLD), Balanced
Input Impedance: 2.4k ohms
Maximum Input Level: +7.7dBV (2.427Vrms)
Gain: 45dB
INST IN
n/a
MIC IN (Plug-in Power)
3.5mm(1/8) 4-pole mini jack/3.5mm (1/8) mini jack
Input Impedance:5k ohms or more
Gain:45dB
LINE IN
3.5mm(1/8) stereo mini jack
Input Impedance: 5k ohms or more
Maximum Input Leve:l+7.7dBV (2.427Vrms)
MIC 2
Omnidirectional Condenser Mic
Analog Audio Outs
Line Out
N/A
Phones
Connector: 1/4 Stereo Phone-jack/ 3.5mm(1/8) 4-pole mini jack/3.5mm (1/8)Stereo mini jack
Maximum Output Level: 15mW+15mW above (Less than THD+NO.1%,32Ohms loaded)
Control Input/Output
USB: USB B-type 4-pin
Format: USB2.0 High Speed (480MHz)
DC In 5V: USB Micro B type
Audio Performance
Frequency response – (To PHONE OUT)
44.1k/48kHz20Hz to 20kHz 0/-1dB (PHONE OUT, JEITA)
88.2k/96kHz20Hz to 40kHz 0/-3dB (PHONE OUT, JEITA)
EIN Less than -113dBu (150 ohm terminated, volume max)
THD+N Less than 0.008%/
S/N ratio90dB or more (MIC IN to PHONE OUT, volume min, JEITA)
Crosstalk95dB or more (MIC IN to PHONE OUT, 1kHz, JEITA)
Computer System Requirements
Windows
Compatible computers:Windows-compatible computer with a USB 2.0 port
CPU type/speed: Dual core/2 GHz or faster (x86)
Memory: 2GB or more
DRIVER: ASIO2.0, WDM
Macintosh
OSFor information of the latest OS version, please click here.
Compatible computersApple MacOS computer with a USB 2.0 port
CPU type/speedDual core/2 GHz or faster
Memory2GB or more
DRIVERCore Audio
iOS
OSiOS 7 or later
General
Power (when connected to PC) USB bus-power
Power (when connected to an iOS device)USB power adapter, External battery pack, TASCAM BP-6AA
Power consumption 1W
Dimensions 5.9″ W 1.57″ H 5.11″ D (150mm W x 40mm H x 130mm D)
Weight0.84lb (382g) 1.10lb (500g)
Operating temperature 41 to 95F (5 to 35C)
Bundled Accessories USB cable, Users manual, warranty card Product Specification Brand Tascam Computer Interface Type USB 2 Analogue Outputs (Total) 1 Mic Preamps (Max) 1 Sample Rate (Max) 96 kHz iPad Compatible Yes Connections (Output) 1 x 1/4″ / 1/8″ Headphones
1 x 3.5mm (1/8″) Jack
DSP Processing No MPN US-32 Analogue Inputs (Total) 1 Connections (Input) 1 x USB
1 x USB Type B
1 x 3.5mm (1/8″) Jack
1 x XLR / Jack Combo
Phantom Power No Bit Resolution 24 Dynamic Range n/a dB Dimensions (mm) 150x40x130 WxHxD Warranty Duration12 months DOA Period28 days ManufacturerSCAN TypeReturn to base RTB Period1 months About Us FAQ Delivery Returns Contact Us Terms & Conditions
