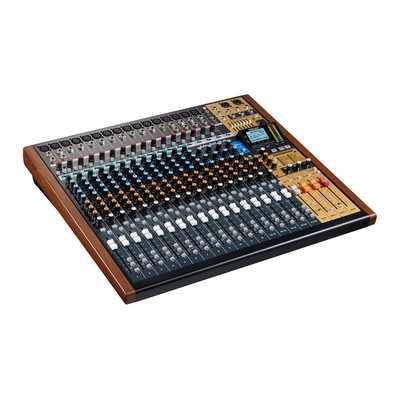

Tascam Model 24 Multitrack Recorder with Integrated USB Audio Interface (NEW)

If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.

If you buy after clicking affiliate links on this site we might receive a commission from companies such as eBay, Amazon etc This does not affect the price you pay.
Click here to see similar items on eBay, and to buy.

Tascam Model 24 Multitrack Recorder with Integrated USB Audio Interface (NEW) The best of both worlds, the TASCAM Model 24 is a full featured 24 Track Digital Multitrack Recorder and 24 Channel USB Audio Interface with integrated Analog Mixdown capabilities.

Tascam Model 24 Multitrack Recorder with Integrated USB Audio Interface Main Features All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards Built-in USB Audio Interface to send/receive audio data to/from DAW 22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo) 16 TASCAM Microphone Preamps with Phantom Power (+48V) 7-band Graphic EQ 16 Pre-set Effects

TASCAM has continuously been providing industry-leading recording solutions for decades, such as the TASCAM 38 Open Reel 8-track, the DA-88 Digital 8-track and the legendary Portastudio Cassette and Digital Multitrack recorders. TASCAM now builds on this legacy to deliver a new classic: the Model 24 Multitrack Recorder/Mixer/Interface.

Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today's working and recording musician

Simple, Intuitive Design
One glance is all you need. The TASCAM Model 24 was developed for easy and immediate operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need to menu diving, and all input/output connections are all on the surface for quick and easy access.

TASCAM's Revolutionary Recording Technology
Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it's time to record The TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to support punch in/out 8 tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for immediate mixdown.

Flexible Connectivity
In addition to the studio quality mic preamps and powerful EQ and routing options the Model 24 features a dedicated stereo channel 1/8 inch, dual RCA Bluetooth™ connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the TASCAM Model 24 can also act as a powerful audio interface and will connect directly to your PC or Mac for easy integration with your DAW of choice.

Mix
Featuring 12 Mono input channels and 4 Mono/Stereo channels, the TASCAM Model 24 is flexible enough to support most groups on stage but compact enough to carry to the gig. Low noise, high gain preamps, one-knob compressors (on selected channels), flexible routing, powerful EQ and silky smooth 100mm faders combine to deliver a truly dynamic, real-time mixing experience. Combine this with a 7 band EQ, dual monitor sends, and on-board effects making the Model 24 a truly powerful portable mixing solution, ready to take the stage (or studio). No confusing sub menus, no lost presets, just immediate hands-on control and incredible analogue sound quality.

Channel Surfing
Designed for use on the road and in the studio, The Model 24 features four different channel strip configurations. The first two channels feature both an XLR input as well as a switchable line/instrument level 1/4 inch input. These are followed by a 1/4 inch TRS Insert connector for easy patching of a compressor, EQ or other effects. Next are the preamp gain controls (with overload indicator LED), switches for a 100Hz Low cut and the Line/Instrument level select switch.

These are followed by the Routing Mode selector, which is common to all channels and allows input assignment selection of your choice – the live incoming signal, the return from a DAW channel or the return from the internal multitrack recorder to each channel for EQ, processing and level control. Worth noting is that the Low Cut switch and the One-Knob Compressor are both wired into the signal path prior to the Routing Mode selection. This ensures that recorded tracks take full advantage of the Low Cut and Compressor setting features.

Directly below this selector, and common to the first 12 channels is a One-Knob Compressor that helps to quickly and easily tame dynamics during a live performance. Also common to the first 12 channels is a musical 3 band EQ with a sweepable midrange frequency.

Following the EQ section are a set of three auxiliary sends labelled Monitor 1, Monitor 2 and FX, providing additional routing to foldback systems and effects.

Next up is the fader section which is consistent across the entire mixer. This roomy control area boasts a Pan control, a backlit Record enable switch and Mute button with an LED indicating engagement. Below these the Model 24 features a full set of 100mm Level faders and individual selector switches for assignment to the Main Mix, the Sub group and Pre Fade Listen. Once again, these are common to all channel strips.

Channels 3 – 12 have been streamlined to feature XLR Microphone and 1/4 inch Line Level inputs.

Channels 13/14 – 19/20 are configured as stereo input channels and feature an XLR Microphone input as well as dual 1/4 inch stereo inputs, with the Left input summing to Mono if the right input connector is unused. As these channels will typically be used for keyboards, drum machines, modular synthesizers and effects processors, the audio controls have been simplified to remove the One-Knob Compressor and to feature an intuitive fixed three-band EQ.

The final channel configuration – channel 21/22 has been optimised for use with mobile devices and features either Stereo RCA and 1/4 inch inputs as well as Bluetooth™ pairing. This channel has also been optimized to feed Monitor 1 and Monitor 2 via rotary auxiliary send controls

Master and Commander
The Master section of the Model 24 has been designed to for fast and intuitive use during live performance and tracking. Directly at hand are premium grade 100mm faders for the Main Mix, both Monitors and Sub-mix as well Mute and assignment buttons. Directly above are the controls for the onboard Digital Effects Processor which allow you to add Reverb, Delay, Chorus, Flanger and more to one or more sources and destination.

Following that are the controls for the integrated multitrack recorder, an assignable 7 Band Graphic EQ and the patch panel for system outputs, headphones and footswitch.

Live and Let DAW
Beyond the ability to simply move recorded tracks to and from a DAW, the Model 24 is also designed as a powerful USB Audio Interface, complete with premium quality mic preamps and onboard compression. Ideal for project studios, the Model 24 will provide 24 simultaneous inputs to a computer based recording system, making it incredibly easy to record multiple musicians simultaneously without the frustration of channel limitations. The Model 24 also provides incredible flexibility at mixdown by making it simple to work completely in-the-box, or route tracks back through the mixer for 22 channels of hands-on control and true analogue sound.

Durability and Reliability
Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM's legendary reliability will keep the music going.

Features At A Glance

All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface
WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
Built-in USB Audio Interface to send/receive audio data to/from DAW
22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)
16 TASCAM Microphone Preamps
Input Mode switch on every input channel
TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
Preamp Gain Controller with Overload indicator (Channels 1 to 12)
3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)
100kHz Low-cut Filter (Channels 1 to 12)
7-band Graphic EQ
16 Pre-set Effects
100mm Long-throw Faders for precise adjustment
Mute, Main/Sub, PLF switches on every input channel
Bluetooth® input supporting both AAC and SBC codecs
SUB Outputs via XLR Balanced and RCA Unbalanced connectors
LINE Inputs via RCA Pin and 1/8 inch Stereo Mini jacks
3 AUX Outputs (Monitor 1, Monitor 2, FX)
1 Stereo Output for Control Room
Phantom Power (+48V)
1/4 inch Stereo Headphone Output
Backlit buttons for key operations such as REC and Play
Multi Jog-dial for quick menu operation
12-segment LED Output Level Meters Listing correct at time of upload errors and omissions excepted.This is brand new item and comes with a full UK warranty and VAT receipt. Payment
