email: ebay@scan.co.uk About Us FAQ Delivery Returns Contact Us Terms & Conditions Components Computing Entertainment Networking Peripherals Software Storage Pro Audio Pro Video Other InterfacesTASCAM US 4X4 Audio Interface TASCAM US 4X4 Audio Interface
TASCAM US 4X4, USB 2, 96KHz, 24 Bit, 4 Mic Pre's, 4 / 4 Analogue I/O, Inc Ableton Live Lite 9 Scan code
LN59893 Manufacturer code

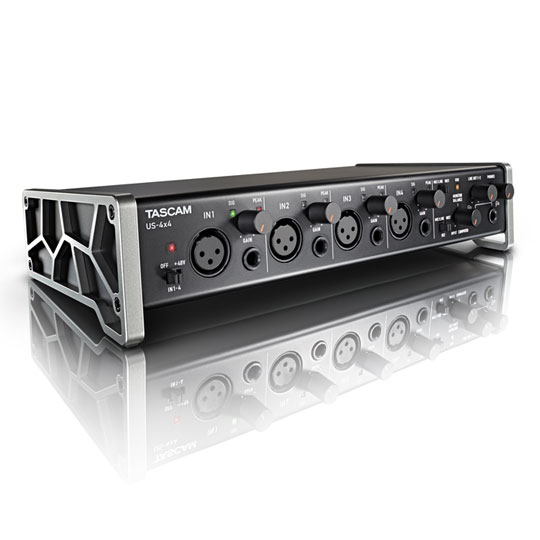

US 4X4 Product Overview TASCAMs US-4×4 combines great audio quality and ergonomic design for a powerful 4-in/4-out USB 2 audio interface.
Four of TASCAMs Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.
The US-4×4 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers. The interface includes two DAW applications to choose from both Cakewalk SONAR X3 LE and Abelton Live Lite 9.
With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-4×4 is the ultimate 4-channel interface for home, project, and mobile studios. Special Features Four Ultra-HDDA mic preamplifiers
Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power
Four TRS analog balanced outputs
Two headphone outputs each with 45mW/ch output power
Dedicated AC adapter is included
Ultra-HDDA (High Definition Discrete Architecture) mic preamps with -125dBu EIN
NE5532 op-amps used at the audio input and output stages
Up to 96kHz/24-bit recording
Support for Windows and Mac OS X operating systems
USB 2.0 computer connection
Connect with iPads and other iOS devices
+48V phantom power for all inputs
Two switchable high-impedance inputs
Microphone preamp gain range of 57 dB
Direct monitoring function for zero-latency monitoring
Tough all-metal casing for durability
Angled design provides excellent usability on a desktop
Balanced analog TRS output jacks suitable for connection to powered monitors
Standard TRS headphones output jack
Separate controls for line and headphones output volumes
MIDI input and output
Output sources can be selected in the setting panel
Input sound monitoring can be set to stereo or mono
Input muting function eliminates noise from unused inputs
USB class compliant 2.0 support
License cards included for SONAR X3 LE/Ableton Live Lite 9
Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band) Product Specification Brand Tascam Analogue Inputs (Total) 4 Connections (Input) 2 x 1/4″ hi-Z guitar
2 x 1/4″ TRS
1 x MIDI
4 x XLR (Mic)
Instrument Inputs (Max) 2 Sample Rate (Max) 96 kHz iPad Compatible Yes Dimensions (mm) not specified WxHxD Misc. Notes Inc Ableton Live Lite 9 MPN US 4X4 Analogue Outputs (Total) 4 Mic Preamps (Max) 4 Phantom Power Yes Bit Resolution 24 Connections (Output) 4 x 1/4″ TRS
2 x 1/4″ TRS stereo headphone
1 x MIDI
DSP Processing No Warranty Duration12 months DOA Period7 days Manufacturerscan TypeReturn to base RTB Period12 months About Us FAQ Delivery Returns Contact Us Terms & Conditions
