Used but in great condition.

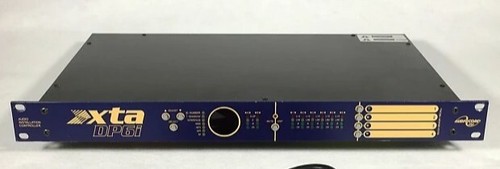

DP6i Audio Installation Controller
The DP6i continues XTA’s reputation for sound quality in a unit designed for the most demanding applications of the installed sound market, where audio quality and system control are critical.
The unit features 2 inputs and 6 outputs. Both inputs have an 8 band parametric equaliser, base delay and gain control. All outputs feature crossover filters, 5 band parametric equaliser, high and low shelving filters, limiter and delay. Full metering is provided for inputs and outputs, with a mute button for instant system control in emergencies.
For added tamper-proof security, the unit has a Safe’ switch internally selectable to disable all front panel controls, and the ability to separately disable just the panel memory recall switches.
Up to 32 DP6i’s can be controlled from a single PC with XTA’s proven AudioCore WindowsTM control software, with the ability for further units to shadow those 32 ID numbers for an unlimited number of system outputs.
DP6i Features
Superb audio quality – carefully optimised double precision signal processing coupled with a 40-bit internal data path ensures a dynamic range in excess of 110dB. The high sampling rate means minimal filtering providing exceptional sonic purity.
A flexible 2-input/6-output multi-mode format caters for any configuration, regardless of scale. A total of 46 parametric equalisation bands are available, each providing +15 to -30dB of gain at centre frequencies between 20Hz and 20kHz, with a wide range of ‘Q’s available between 0.4 to 128.
All parameters feature fine resolution with 1/36 octave frequency steps, 0.1dB gain increments, and 100 ‘Q’ settings. Any parametric section can also be set to operate as a high or low shelving filter.
Each output features a high performance limiter, provided with complete control over attack, release and threshold parameters. To aid set-up, the output meters show headroom to the limiter threshold, and use time constants that track those of the limiter to display precise power usage.
Each output features variable high and low pass filters, with a choice of 12, 18 or 24dB/Octave roll-off, and Butterworth, Bessel or Linkwitz-Riley responses.
Independent control of each high and low pass filter allows asymmetric crossover bands to be created.
Delay of up to 650mS may be independently set for each output, with an exceptionally fine minimum increment of 2.6S.
The comprehensive standard specification also includes 40 memories, and remote control via MIDI (memory recall only), RS232 or RS485 ports, with full security lock-out.
AES/EBU Digital input and output interfaces are available as an option.
Input and output balancing transformers are also available as an option.
A GPI (General Purpose) interface is also available to allow remote memory recall via simple contact closure arrangements.
DP6i Specifications
Inputs Two electronically balanced. [++]
Impedance >10k ohms.
CMRR >65dB 50Hz – 10kHz.
Outputs Six electronically balanced. [++]
Source Imp < 60ohms.
Min. Load 600ohm.
Max. Level +20dBm into 600 ohm load.
Frequency Resp. 0.5dB 20Hz – 20kHz.
Dynamic Range >110dB 20Hz -20kHz. unwtd.
Distortion < 0.02% @ 1kHz, +18dBm.
Maximum Delay 650 mS. (increment 2.6 l uS Steps)
Output gain Adjustable +15dB to -40dB in 0.1 dB steps and mute.
Parametric Equalisation
Filters 8 Per input 5 per output.
Filter gain +15dB to -30dB in 0.1dB steps.
Centre frequency 20Hz – 20kHz, 1/36 octave steps. (368 positions) Filter Q/BW 0.4 to 128/2.5 to 0.008
High & Lowpass Filters
Filters 1 of each per output.
Frequency (HPF) 10Hz – 16kHz, 1/36 octave steps.
Frequency (LPF) 60Hz – 22kHz, 1/36 octave steps.
Response Bessel / Butterworth 12dB, 18dB and 24dB per octave and Linkwitz-Riley 24dB per octave.
Limiters
Threshold +22dBu to -10dBu
Attack time 0.3 to 90 milliseconds.
Release time 2, 4, 8, 16 or 32 times the attack time.
Display 2 x 7 segment LED
Metering 4 point LED ladder with digital overflow monitoring.
Connectors
Inputs 3 pin female XLR.
Outputs 3 pin male XLR.
RS485 In/Out XLRS
RS232 9 Pin (Female) DEE Connector
MIDI In / 5 pin DIN.
Power 3 pin IEC.
Power 60VAC – 240VAC.
Consumption < 30 watts.
Weight 3.5kg. Net (4.8kg. Shipping)
Size 1.75″(1U) x 19″ x 11.8″ (44 x 482 x 300mm)
excluding connectors.
Options [++] = Transformers available.
AES/EBU Digital I/O; GPI Interface.
DP6i Architects’ Specifications
The digital processor shall provide 2 Inputs and 6 Outputs. Operating modes shall be provided to allow the unit to function as 2 x 3 way, 1 x 6 way, 2 + 4 way or 5 + 1 way mode with mono sum available.There shall be 5 parametric sections for each output and 8 parametric sections per input. Each output shall be able to have up to 650 ms of delay in 2.6 us increments. Limiters shall be provided for each output, with control over attack, release and threshold parameters.
Headroom shall be displayed for both inputs, with setup and memory information shown on an dual 7 segment display. A security ‘lock-out’ facility shall be included. Quick memory recall button shall allow the first 4 memories to be instantly recalled vai the front panel withte option og a simple GPI interface for remote recall of further memories with simple contact closure.
The digital audio processor shall meet or exceed the following specifications:-Frequency response:- 0.5dB 20Hz-20kHz. Dynamic range:> 110dB 20Hz-20kHZ, unweighted. Parametric filters: Total of 46 digital filter sections. Filter gain: +15dB, -30dB, 0.1dB steps. Centre frequency: 20Hz-20kHz, 1 /36 octave steps. Filter Q: 0.4 to 128.
Inputs and Outputs shall be via XLR connectors and be electronically balanced as standard. The digital audio processor shall be a 1U, 19″ rackmount device capable of operating from a 60 V A C – 240 V A C. 50/60Hz supply.The digital audio processor shall be the XTA Electronics model DP226.
